TTGO T-OI PLUS RISC-V ESP32-C3

LilyGO’s ESP32-C3 board with RISC-V core and USB-C - great for portable, low-cost IoT projects with BLE and Wi-Fi.

USB-C

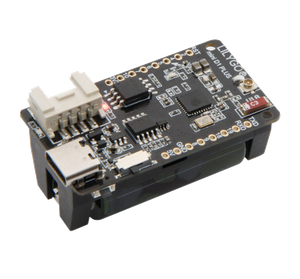

TTGO T-OI PLUS RISC-V ESP32-C3 board
45.7 × 25.8 mm
ESP32-C3
RISC-V MCU
160MHz
clock
4MB
flash
400KB
SRAM
10· 3 ADC
GPIO
BLE 5.0+ WiFi
radio
On this page

Pinout

10 pins · 2.54 mm pitch
View:

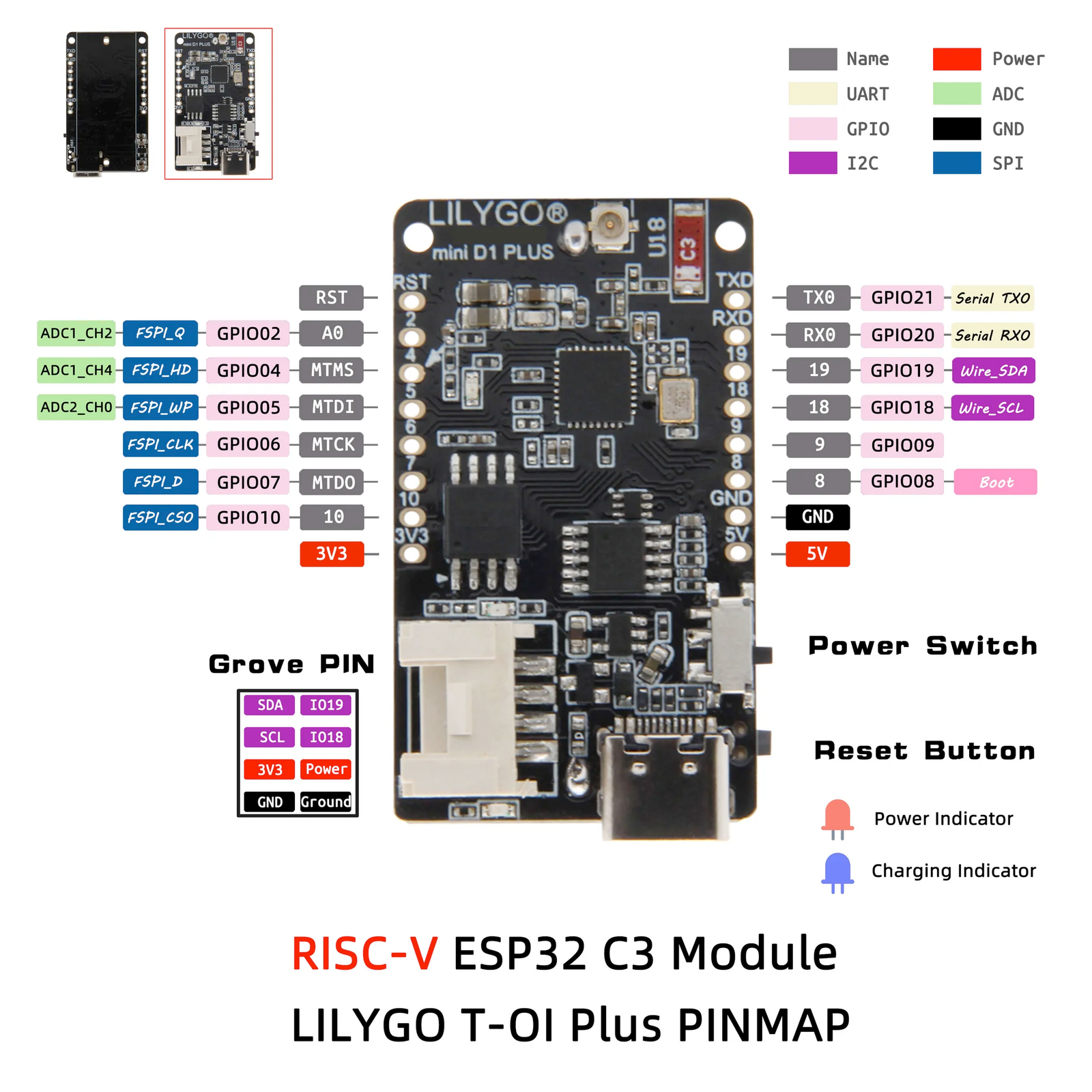

TTGO T-OI PLUS RISC-V ESP32-C3 pinout diagram
PinGPIOLabelsStatusCapabilitiesNotes
12A1BAT_ADC_PINstrappingadc
23LED_BUILTINsafe-
34SCKA2strappingadc · spi
45MISOA3strappingadc · spi
56MOSIstrappingspi
67SSstrappingspi
718SCLuarti2c
819SDAuarti2c
920RXuartuart
1021TXuartuart

Start with these

1 pins with no boot or system involvement
LED_BUILTIN

Freely assignable - no strapping, flash, USB or JTAG duties. Ideal first picks for buttons, sensors and LEDs.

Fine - with a little care

sampled at boot or shared with debug/serial
PinLabelWhat to knowRole
A1GPIO2Must be held high during boot (if low on reset, normal flash boot may fail)Strapping
SCKMTMSUsed during boot; JTAG TMS for debugging; acts as Quad-SPI flash IO (hold data line) in internal-flash variantsJTAG
MISOMTDIUsed during boot; JTAG TDI for debugging; acts as Quad-SPI flash IO (write-protect data line) in internal-flash variantsJTAG
MOSIMTCKUsed during boot; JTAG TCK for debugging; provides flash clock in internal-flash variantsJTAG
SSMTDOUsed during boot; JTAG TDO for debugging; acts as Quad-SPI flash IO (data line) in internal-flash variantsJTAG
RXU0RXDUsed as UART0 receive (console/bootloader); repurposing may disable serial programming and debug logsUART
TXU0TXDUsed as UART0 transmit (console/bootloader); repurposing may disable serial console output and printingUART

Only if you know the tricks

wired to flash or USB - expect a fight
PinLabelWhat to knowRole
SCLUSB_D-By default connected to on-chip USB Serial/JTAG controller; to use as GPIO it must be reconfigured from its USB functionUSB
SDAUSB_D+By default connected to on-chip USB Serial/JTAG controller; not available for GPIO use unless USB functionality is disabled or remappedUSB
These are recommendations, not hard rules - with the right pull-ups, timing and boot-state awareness most pins can be made to work. When in doubt, start green.
Pinout notes All 10 pins on the TTGO T-OI PLUS RISC-V ESP32-C3 are usable GPIO, spaced at the standard 2.54 mm pitch. Peripheral wiring is straightforward: I²C is mapped to…

All 10 pins on the TTGO T-OI PLUS RISC-V ESP32-C3 are usable GPIO, spaced at the standard 2.54 mm pitch.

Peripheral wiring is straightforward: I²C is mapped to SDA on GPIO19 and SCL on GPIO18; the SPI bus (MOSI, MISO, SCK, SS) is broken out in full; TX/RX on GPIO21 and GPIO20 cover serial logging and flashing.

Beyond plain digital I/O you get 3 ADC-capable pins for sensors and battery monitoring.

7 of the exposed pins carry boot-time or system duties on the ESP32-C3 (A1, SCK, MISO and 4 more) - check the guidance above before wiring anything to them. LED_BUILTIN is free of any such role - the safest first picks.

Getting started

flash your first firmware in ~2 minutes
Tool:
1
Connect over USB
Serial chip: CH340K. Not detected? Hold BOOT while plugging in.
2
Flash with your tool
Arduino IDE, PlatformIO, ESPHome or esptool - copy the settings on the right.
3
Verify it runs
The blink example uses GPIO3 - swap for your board's LED pin if different.
Tools → Board settings Copy
Board:            Ttgo-t-oi-plus Dev
Flash Size:       4MB · QIO
Upload Speed:     921600

// blink
pinMode(3, OUTPUT);
digitalWrite(3, LOW);   // on (often inverted)
platformio.ini Copy
[env:ttgo-t-oi-plus]
platform = espressif32
board = esp32-c3-devkitm-1
framework = arduino
monitor_speed = 115200
upload_speed = 921600
device.yaml Copy
esp32:
  board: esp32-c3-devkitm-1
  variant: ttgo-t-oi-plus
  framework:
    type: esp-idf

# blink - GPIO3
output:
  - platform: gpio
    pin: 3
    id: led_out
light:
  - platform: binary
    name: "LED"
    output: led_out
shell Copy
esptool.py --chip esp32c3 --port /dev/ttyACM0 \
  write_flash 0x0 firmware.bin
Build details: sketch space 1310720 B · data 327680 B · QIO

Specifications

ESP32-C3 · 45.7 × 25.8 mm
Compute
MCU
ESP32-C3 · RISC-V
Clock
160 MHz
SRAM · Flash
400 KB · 4MB
Radio
Wi-Fi
802.11 b/g/n
Bluetooth
5.0 LE
Antenna
Ceramic
I/O
GPIO · ADC
10 · 3
UART · I²C · SPI
2 · 1 · 3
PWM
6 channels
Power
USB
USB-C
Serial
CH340K
Boot address
0x0
Flashing
Upload · OTA
esptool_py · esp_ota
Flash · Boot mode
QIO · QIO
Sketch · Data
1.25 MB · 320 KB
25.8 mm45.7 mm
45.7 × 25.8 mm · pin pitch 2.54 mm
The TTGO T-OI PLUS RISC-V ESP32-C3 uses esptool_py for firmware uploads, esp_ota for over-the-air (OTA) updates. Flash mode is QIO with QIO boot mode. The maximum sketch size is 1.25 MB with 320 KB available for data.

About this board

Inside sits the ESP32-C3 - a single-core RISC-V and the budget low-power pick.

At $5.50 it's cheaper than most ESP32-C3 boards, which usually run around $10.

Only 10 GPIO are broken out, where most ESP32-C3 boards manage about 13 - worth checking the pinout covers what you need.

Around the module: a Grove connector, battery charging (TP4054), status LEDs (Power, Charge, UART) and Reset buttons.

  • Rechargeable 16340 Li-ion battery holder on the back
  • TP4054 Li-ion charger without on-board battery protection (use protected cells)
  • IPEX/u.FL connector for an external antenna
  • Power ON/OFF slide switch
  • D1 mini-compatible pinout
