Espressif ESP32-C3-DevKitC-02
Full-featured ESP32-C3 dev board with USB and debug headers - ideal for prototyping and embedded systems.

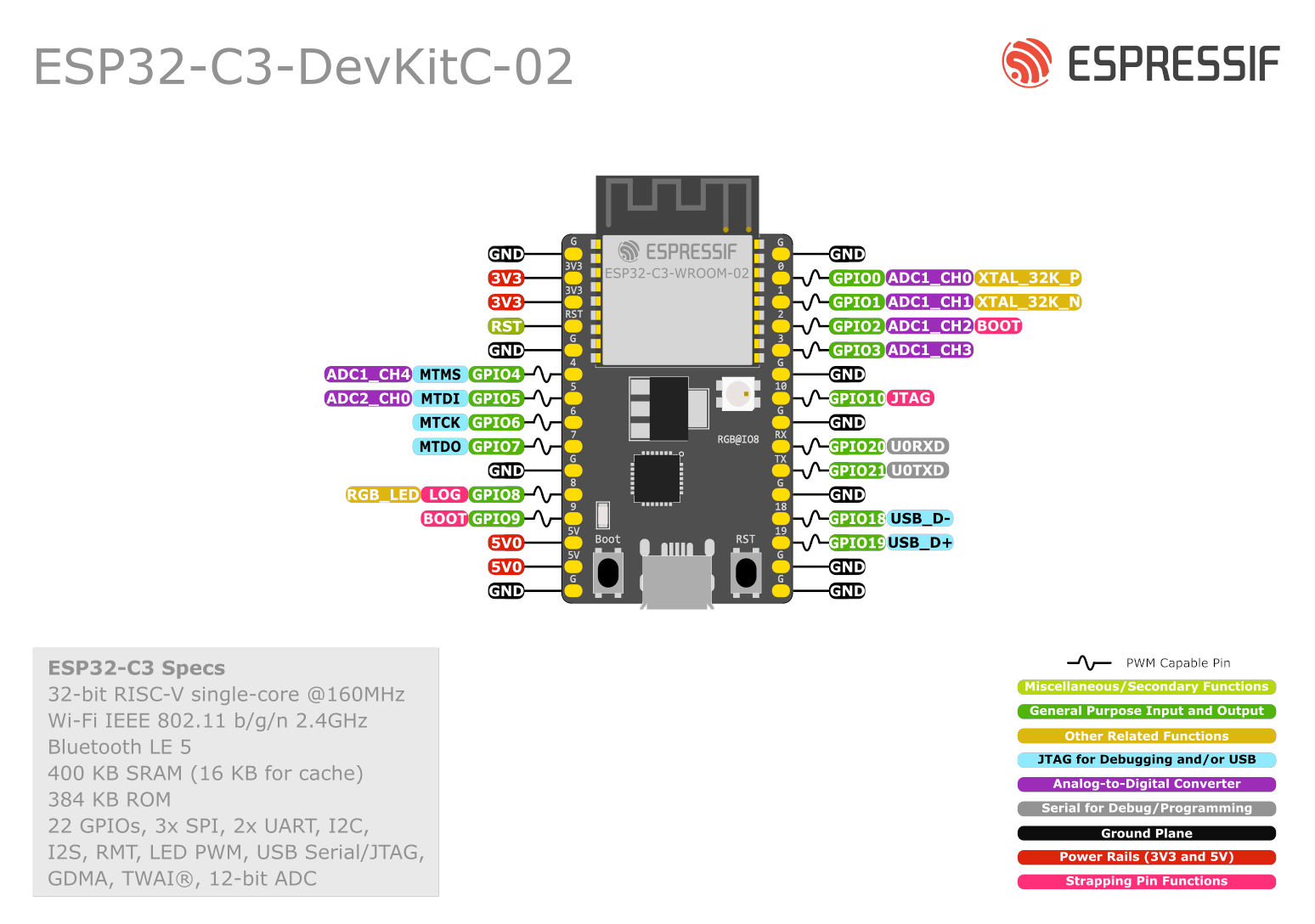

Espressif ESP32-C3-DevKitC-02 Pinout
30 pins · 2.54 mm pitch
| Pin | GPIO | Labels | Status | Capabilities | Notes |
|---|---|---|---|---|---|
| 1 | - | GND | ground | - | Ground |
| 2 | - | 3V33.3V | power | - | 3.3V regulated output |
| 3 | - | 3V33.3V | power | - | 3.3V regulated output |
| 4 | - | RSTEN | control | - | Chip reset (active low) |
| 5 | - | GND | ground | - | Ground |
| 6 | 4 | IO4A4SCK | strapping | adc · spi · pwm | ADC1_CH4; SPI SCK; JTAG MTMS |
| 7 | 5 | IO5A5MISO | strapping | adc · spi · pwm | ADC2_CH0; SPI MISO; JTAG MTDI |
| 8 | 6 | IO6MOSI | strapping | spi · pwm | SPI MOSI; JTAG MTCK |
| 9 | 7 | IO7SS | strapping | spi · pwm | SPI SS; JTAG MTDO |
| 10 | - | GND | ground | - | Ground |
| 11 | 8 | IO8SDA | strapping | i2c · pwm | Onboard RGB LED; default I2C SDA |
| 12 | 9 | IO9SCL | strapping | i2c · pwm | BOOT button; default I2C SCL |
| 13 | - | 5V | power | - | 5V input (from USB) / output |
| 14 | - | 5V | power | - | 5V input (from USB) / output |
| 15 | - | GND | ground | - | Ground |
| 16 | - | GND | ground | - | Ground |
| 17 | 0 | IO0A0 | safe | adc · pwm | ADC1_CH0; RTC; XTAL_32K |
| 18 | 1 | IO1A1 | safe | adc · pwm | ADC1_CH1; RTC; XTAL_32K |
| 19 | 2 | IO2A2 | strapping | adc · pwm | ADC1_CH2; FSPIQ |
| 20 | 3 | IO3A3 | safe | adc · pwm | ADC1_CH3 |
| 21 | - | GND | ground | - | Ground |
| 22 | 10 | IO10 | safe | pwm | General-purpose GPIO; FSPICS0 |
| 23 | - | GND | ground | - | Ground |
| 24 | 20 | IO20RX | uart | uart · pwm | UART0 RX |
| 25 | 21 | IO21TX | uart | uart · pwm | UART0 TX |
| 26 | - | GND | ground | - | Ground |
| 27 | 18 | IO18 | uart | pwm | USB D- (native USB Serial/JTAG) |
| 28 | 19 | IO19 | uart | pwm | USB D+ (native USB Serial/JTAG) |
| 29 | - | GND | ground | - | Ground |
| 30 | - | GND | ground | - | Ground |
Start with these
4 pins with no boot or system involvementFreely assignable - no strapping, flash, USB or JTAG duties. Ideal first picks for buttons, sensors and LEDs.
Fine - with a little care
9 pins · 9 things to knowIO4 Bootstrapping pin; JTAG TMS; Flash data (FSPIHD in internal-flash models) JTAG
Used during boot; JTAG TMS for debugging; acts as Quad-SPI flash IO (hold data line) in internal-flash variants
IO5 Bootstrapping pin; JTAG TDI; Flash data (FSPIWP in internal-flash models) JTAG
Used during boot; JTAG TDI for debugging; acts as Quad-SPI flash IO (write-protect data line) in internal-flash variants
IO6 Bootstrapping pin; JTAG TCK; Flash clock (FSPICLK in internal-flash models) JTAG
Used during boot; JTAG TCK for debugging; provides flash clock in internal-flash variants
IO7 Bootstrapping pin; JTAG TDO; Flash data (FSPID in internal-flash models) JTAG
Used during boot; JTAG TDO for debugging; acts as Quad-SPI flash IO (data line) in internal-flash variants
IO8 Bootstrapping pin (needs HIGH at reset); also gates ROM boot message printing (UART_PRINT_CONTROL efuse) Strapping
Must be held high during reset (if low, UART flashing/boot may not work)
IO9 Bootstrapping pin; selects boot mode (HIGH = SPI flash boot, LOW = UART download) Strapping
Controls boot mode on reset (HIGH for normal flash boot, LOW enters serial download mode)
IO2 Strapping pin, but it does not select the boot mode - GPIO9 does. Espressif only recommend pulling it up against reset-time glitches. Floating by default. Strapping
A strapping pin: Espressif recommend an external pull-up against glitches at reset, so avoid heavy capacitive loads or a strong low drive here. It does not put the chip into download mode (that is GPIO9).
IO20 UART0 RXD (default serial input) UART
Used as UART0 receive (console/bootloader); repurposing may disable serial programming and debug logs
IO21 UART0 TXD (default serial output) UART
Used as UART0 transmit (console/bootloader); repurposing may disable serial console output and printing
Only if you know the tricks
2 pins · 2 things to knowIO18 USB D- line (USB Serial/JTAG interface) USB
By default connected to on-chip USB Serial/JTAG controller; to use as GPIO it must be reconfigured from its USB function
IO19 USB D+ line (USB Serial/JTAG interface) USB
By default connected to on-chip USB Serial/JTAG controller; not available for GPIO use unless USB functionality is disabled or remapped
The Espressif ESP32-C3-DevKitC-02 pinout brings out 30 pins at a 2.54 mm pitch - 15 usable GPIO alongside the GND, 3V3 and 5V power rails.
For peripherals, I²C is mapped to SDA on GPIO8 and SCL on GPIO9; the SPI bus (MOSI, MISO, SCK, SS) is broken out in full; TX/RX on GPIO21 and GPIO20 cover serial logging and flashing.
On the analog side there are 6 ADC-capable pins for sensors and battery monitoring and PWM on every GPIO.
If you want zero surprises, IO0, IO1, IO3 and IO10 are free of any such role - the safest first picks. 9 of the exposed pins carry boot-time or system duties on the ESP32-C3 (IO4, IO5, IO6 and 6 more).
Getting started
flash your first firmware in ~2 minutesBoard: ESP32C3 Dev Module Flash Size: 4MB (32Mb) Flash Mode: DIO Partition Scheme: Default 4MB with spiffs (1.2MB APP/1.5MB SPIFFS) Upload Speed: 921600
// toggle GPIO0 - wire an LED and resistor to it
void setup() {
pinMode(0, OUTPUT);
}
void loop() {
digitalWrite(0, HIGH); delay(500);
digitalWrite(0, LOW); delay(500);
}[env:esp32-c3-devkitc-02]
platform = espressif32
board = esp32-c3-devkitm-1
framework = arduino
monitor_speed = 115200
upload_speed = 921600esp32-c3-devkitm-1 - or type it after board =.esp32:
board: esp32-c3-devkitm-1
variant: esp32c3
framework:
type: esp-idf
# blink - GPIO0
output:
- platform: gpio
pin: 0
id: led_out
light:
- platform: binary
name: "LED"
output: led_outesp32-c3-devkitm-1 (same ids as PlatformIO).esptool.py --chip esp32c3 --port /dev/ttyACM0 \
--baud 921600 write_flash 0x0 firmware.bin--port = your /dev/tty* (macOS/Linux) or COMx (Windows).Downloads
Free for non-commercial use, credit espboards.dev · License

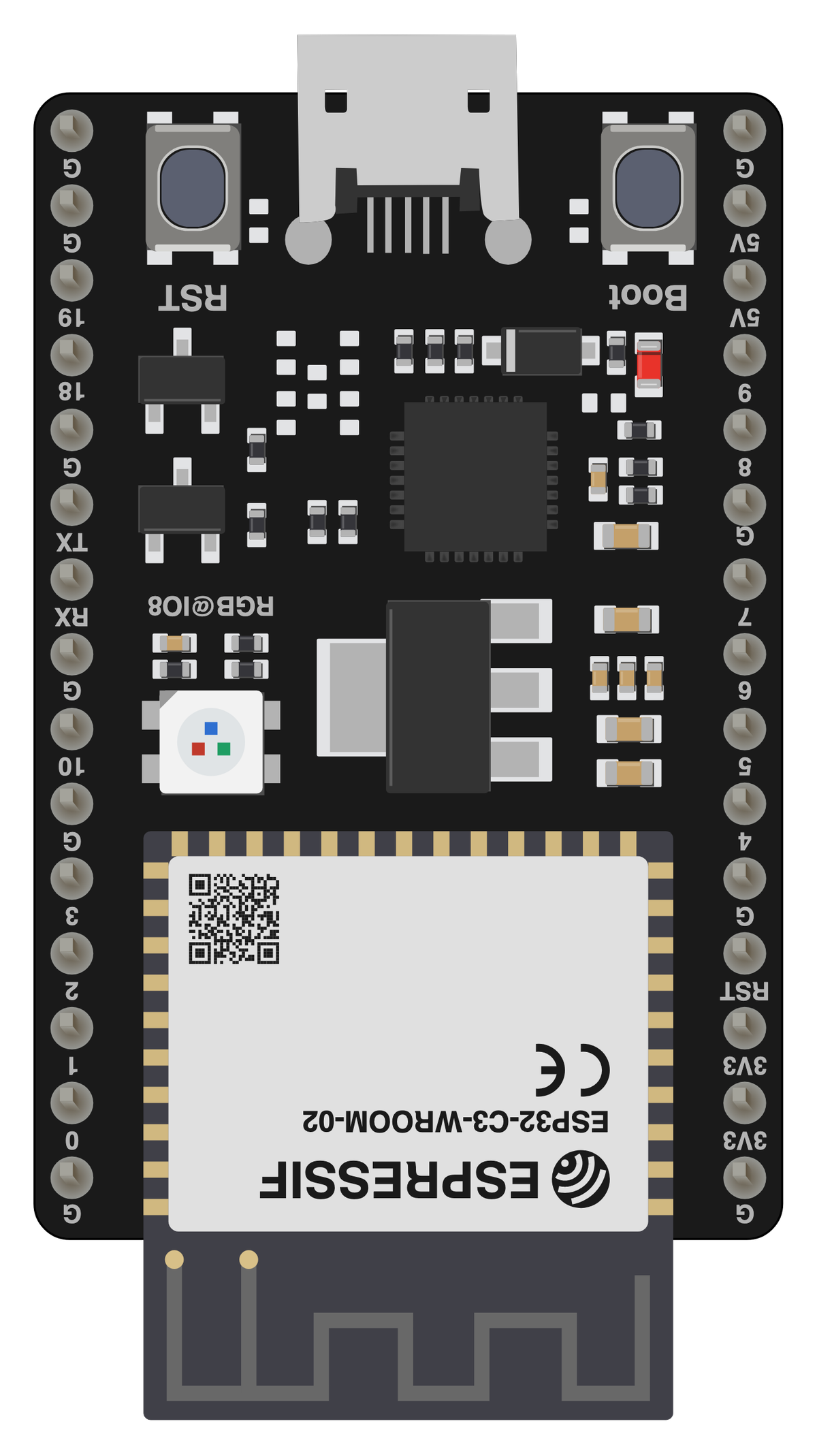

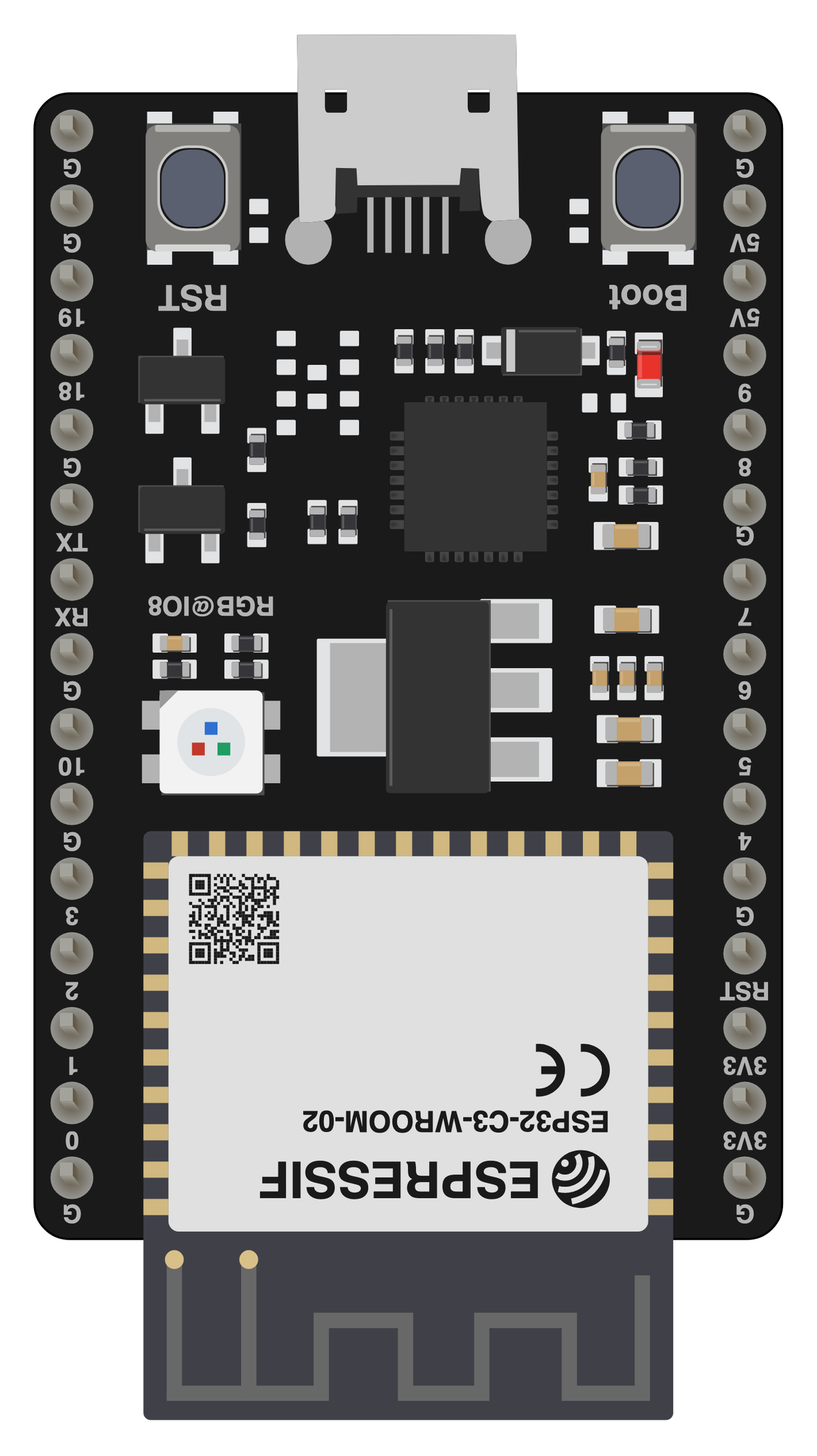

Board illustration
The bare Espressif ESP32-C3-DevKitC-02 board drawn to scale at 38.91 × 25.4 mm, with no pin labels on it. Made for slide decks, wiring diagrams and project write-ups where a photo is too busy. Take the scalable SVG for print or editing, the high-resolution PNG to drop straight in, or the transparent PNG when you need it with no background behind it.

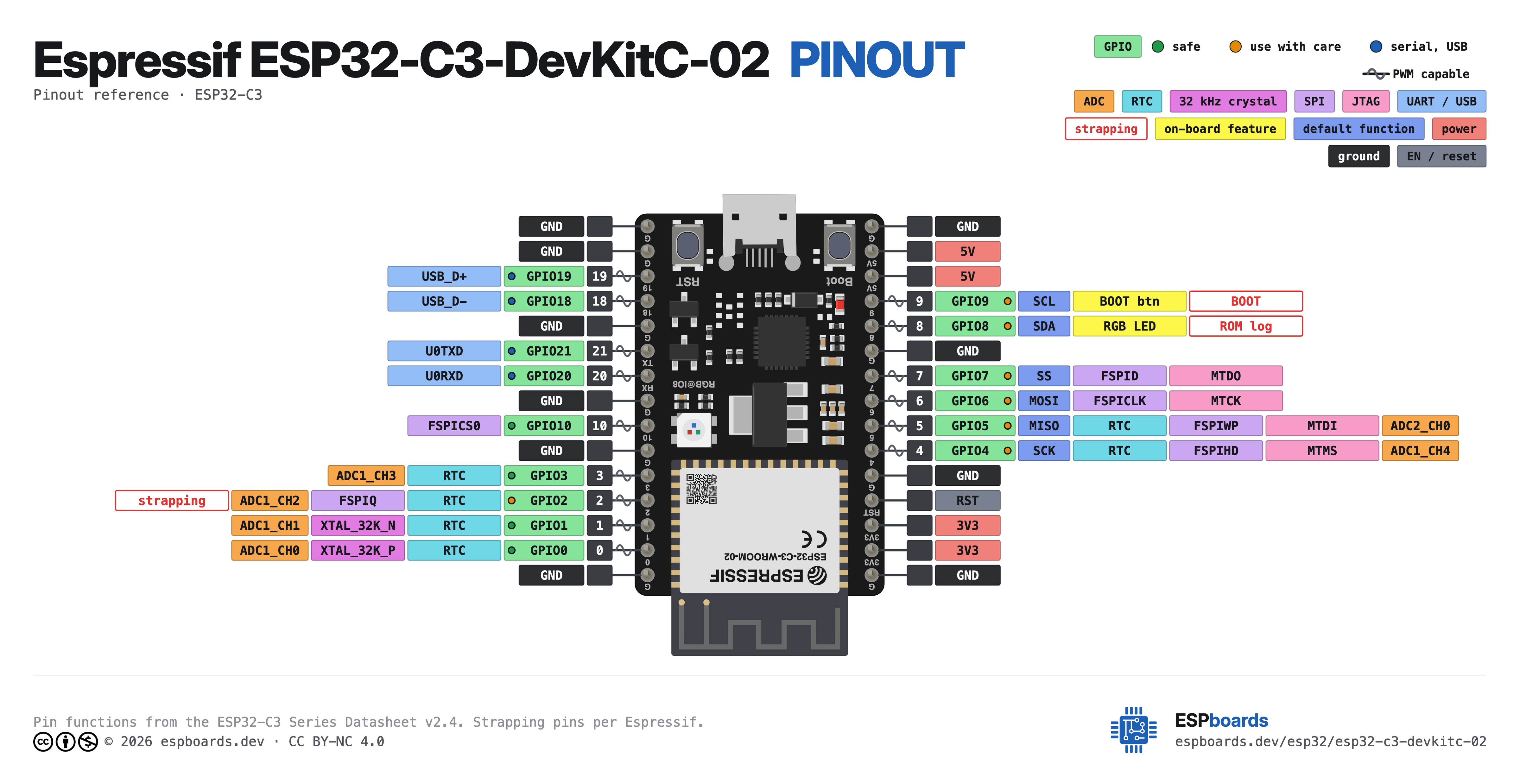

Pinout diagram
Every pin on both sides of the board with its functions, drawn by ESPboards from the ESP32-C3 Series Datasheet v2.4 - the same sheet shown at the top of this page. The PNG is a high-resolution image for screens, the SVG is vector so it stays sharp at any size, and the PDF is laid out to print on A4 or Letter.
Yours to use, share and adapt for non-commercial work, as long as you credit espboards.dev - the full terms and ready-made credit lines are here.
Specifications
ESP32-C3 · 38.91 × 25.4 mm · vs other ESP32 chips →Dimensions
About this board
At its core is the ESP32-C3 - a single-core RISC-V and the budget low-power pick.
Expect to pay about $8.00 - less than the ~$10 most ESP32-C3 boards go for.
Onboard you'll find an addressable RGB LED (GPIO8) and Boot/Reset buttons.
