End of life - this module is discontinued and not recommended for new designs.
ESP32 Boards/ ESP32/ ESP32-DU1906

ESP32-DU1906

EOL DU1906

ESP32-DU1906 combines Wi-Fi, Bluetooth and Bluetooth LE with voice processing: the ESP32-D0WD-V3 is the main MCU and Baidu's DU1906 is the front-end voice chip that handles far-field array signal processing and wake-word detection. Only a Chinese datasheet exists.

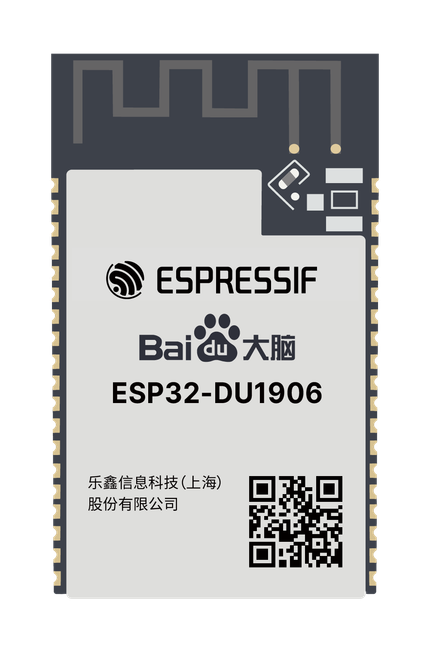

ESP32-DU1906 module
22 × 42 mm
16MB
Flash
8MB
PSRAM
21
GPIOs
22×42mm
Size

Specifications

Datasheet ↗

Module

FamilyDU1906
Embedded chipESP32-D0WD-V3, DU1906
GPIOs21 (ESP32 GPIOs from the pin table, plus 1 DSP GPIO)
Module pins84
AntennaPCB antenna
Dev boardESP32-Korvo-DU1906
Operating temp-20°C ~ 85°C
Dimensions22 × 42 × 3.5 mm

Memory

Flash8 / 16 MB
PSRAMUp to 8 MB

Connectivity

Wi-Fi802.11 b/g/n (2.4 GHz)
Bluetooth4.2 Classic + LE

Module variants

2 variants
Base lowest-cost config Top highest spec High-temp extended temperature range EOL end of life
VariantFlashPSRAMTags
ESP32-DU1906-N8R88 MB8 MBBase EOL
ESP32-DU1906-N16R816 MB8 MBTop EOL

About the ESP32-DU1906

ESP32-DU1906 is a voice module that pairs the ESP32-D0WD-V3 chip with Baidu's DU1906 voice-processing chip for far-field speech wake-up and interaction, with an on-board PCB antenna. Espressif has marked it End of Life (EOL) and publishes its datasheet in Chinese only.

  • 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 BR/EDR + Bluetooth LE
  • DU1906: dual-core HiFi 4 audio DSP up to 300 MHz with 2.75 MB on-chip SRAM
  • 84 pins: 21 ESP32 GPIOs plus the DSP's I2S, TDM, PDM, I2C-slave and UART lines
  • 8 MB flash (16 MB as a custom option) and 8 MB PSRAM
  • Needs a 3.1 ~ 3.5 V supply plus a separate 1.1 V (1.06 ~ 1.21 V) rail
  • Operating temperature: -20°C ~ 85°C
  • Size: 22 x 42 x 3.5 mm

The ESP32-DU1906 has 8 MB flash and 8 MB PSRAM as standard. The datasheet lists 16 MB flash as a custom option, and both part numbers appear in Espressif PCN-2021-030. The module is EOL.

  • ESP32-DU1906-N8R8: 8 MB flash, 8 MB PSRAM (standard configuration).
  • ESP32-DU1906-N16R8: the custom 16 MB flash option, 8 MB PSRAM.
