Not recommended for new designs - prefer a newer module for future projects.
ESP32 Boards/ ESP32/ ESP32-PICO-MINI-02U

ESP32-PICO-MINI-02U

NRND PICO

ESP32-PICO-MINI-02U is a small Wi-Fi + Bluetooth + Bluetooth LE MCU module based on ESP32-PICO-V3-02, a System-in-Package (SiP) device that integrates 8 MB SPI flash, 2 MB SPI PSRAM and a 40 MHz crystal oscillator. Espressif lists applications such as smart speakers, speech recognition toys, gateways and Ethernet devices.

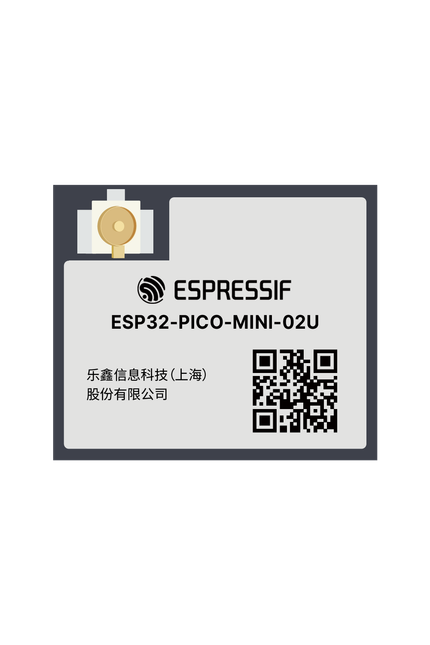

ESP32-PICO-MINI-02U module
13.2 × 11.2 mm
8MB
Flash
2MB
PSRAM
27
GPIOs
13.2×11.2mm
Size

Specifications

Datasheet ↗

Module

FamilyPICO
Embedded chipESP32-PICO-V3-02
GPIOs27
Module pins53
AntennaExternal antenna connector (W.FL / MHF III compatible, not U.FL)
Dev boardESP32-PICO-DevKitM-2
Operating temp-40°C ~ 85°C
Dimensions13.2 × 11.2 × 2.4 mm

Memory

Flash8 MB
PSRAMUp to 2 MB

Connectivity

Wi-Fi802.11 b/g/n (2.4 GHz)
Bluetooth4.2 Classic + LE

Module variants

1 variant
Base lowest-cost config Top highest spec High-temp extended temperature range NRND not recommended for new designs
VariantFlashPSRAMTags
ESP32-PICO-MINI-02U-N8R28 MB2 MBBase NRND

About the ESP32-PICO-MINI-02U

ESP32-PICO-MINI-02U is the external-antenna version of ESP32-PICO-MINI-02: a small Wi-Fi + Bluetooth + Bluetooth LE module built on the ESP32-PICO-V3-02 SiP, which holds the dual-core ESP32 chip, 8 MB of flash, 2 MB of PSRAM and the 40 MHz crystal in one package. Espressif now marks it not recommended for new designs (NRND).

  • Size: 13.2 x 11.2 x 2.4 mm
  • 2.4 GHz Wi-Fi (802.11 b/g/n), Bluetooth v4.2 BR/EDR and Bluetooth LE
  • 27 GPIOs on a 53-pin footprint
  • 8 MB flash and 2 MB PSRAM inside the SiP
  • Operating temperature: -40°C ~ 85°C
  • External antenna connector (W.FL / MHF III compatible, not U.FL)

The ESP32-PICO-MINI-02U has the same SiP, memory and pin definitions as ESP32-PICO-MINI-02, with a connector for an external antenna instead of the PCB antenna. The connector is a third-generation type, compatible with Hirose W.FL, I-PEX MHF III and Amphenol AMMC (not U.FL).

  • ESP32-PICO-MINI-02U-N8R2 (NRND): 8 MB flash, 2 MB PSRAM, -40°C ~ 85°C.

Espressif added the NRND label in October 2026. Its product selector lists ESP32-S3-WROOM-1U-N8R2, an ESP32-S3 module, as the replacement.
