Not recommended for new designs - prefer a newer module for future projects.
ESP32 Boards/ ESP32-S2/ ESP32-S2-MINI-1U

ESP32-S2-MINI-1U

NRND MINI

ESP32-S2-MINI-1U is a general-purpose ESP32-S2 Wi-Fi module with an external antenna connector (W.FL / MHF III compatible). N4 is NRND and H4 and N4R2 are end of life; Espressif lists ESP32-S2-MINI-2U-N4 as the replacement.

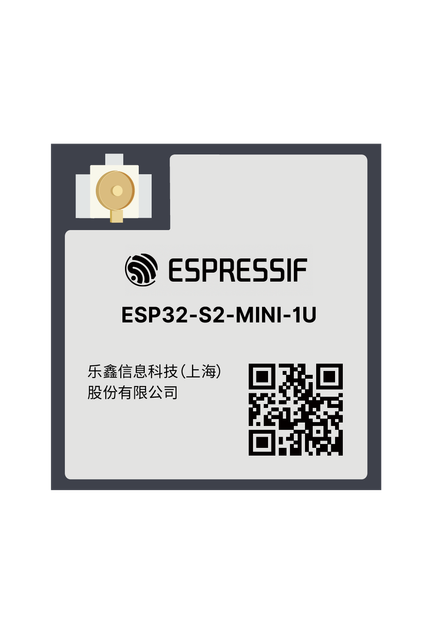

ESP32-S2-MINI-1U module
15.4 × 15.4 mm
4MB
Flash
2MB
PSRAM
37
GPIOs
15.4×15.4mm
Size

Specifications

Datasheet ↗

Module

FamilyMINI
Embedded chipESP32-S2FH4, ESP32-S2FN4R2
GPIOs37 (36 on N4R2; IO26 goes to the in-package PSRAM)
Module pins65
AntennaExternal antenna connector (W.FL / MHF III compatible, not U.FL)
Dev boardESP32-S2-DevKitM-1
Operating temp-40°C ~ 85°C (H4: -40°C ~ 105°C)
Dimensions15.4 × 15.4 × 2.4 mm

Memory

Flash4 MB
PSRAMUp to 2 MB

Connectivity

Wi-Fi802.11 b/g/n 2.4 GHz

Module variants

3 variants
Base lowest-cost config Top highest spec High-temp extended temperature range NRND not recommended for new designs EOL end of life
VariantFlashPSRAMTags
ESP32-S2-MINI-1U-N44 MB-Base NRND
ESP32-S2-MINI-1U-H44 MB-High-temp EOL
ESP32-S2-MINI-1U-N4R24 MB2 MBEOL

About the ESP32-S2-MINI-1U

ESP32-S2-MINI-1U is the external-antenna version of the ESP32-S2-MINI-1: the same ESP32-S2 module with an antenna connector instead of the PCB antenna. It is not recommended for new designs (NRND): Espressif's product selector lists ESP32-S2-MINI-2U-N4 as the replacement for the N4 variant.

  • Small size: 15.4 x 15.4 x 2.4 mm
  • 2.4 GHz Wi-Fi (802.11 b/g/n), no Bluetooth
  • 37 GPIOs on a 65-pin footprint (36 on N4R2)
  • 4 MB flash in the chip package, optional 2 MB PSRAM (N4R2, end of life)
  • Full-speed USB OTG, touch sensor, ADC, DAC
  • Operating temperature: -40°C ~ 85°C (H4, end of life: -40°C ~ 105°C)
  • Third-generation antenna connector, compatible with Hirose W.FL, I-PEX MHF III and Amphenol AMMC (not U.FL / MHF I)

The ESP32-S2-MINI-1U variants differ in PSRAM and temperature rating. "N" parts are rated -40°C ~ 85°C and "H" parts -40°C ~ 105°C.

  • ESP32-S2-MINI-1U-N4 (NRND): 4 MB flash (ESP32-S2FH4 chip), no PSRAM. Replaced by ESP32-S2-MINI-2U-N4.
  • ESP32-S2-MINI-1U-H4 (EOL): 4 MB flash, no PSRAM, -40°C ~ 105°C.
  • ESP32-S2-MINI-1U-N4R2 (EOL): 4 MB flash and 2 MB PSRAM (ESP32-S2FN4R2 chip); IO26 is used by the PSRAM.
