End of life - this module is discontinued and not recommended for new designs.
ESP32 Boards/ ESP32-S2/ ESP32-S2-WROVER-I

ESP32-S2-WROVER-I

EOL WROVER

ESP32-S2-WROVER-I is an end-of-life ESP32-S2 Wi-Fi module with 2 MB PSRAM and an external antenna connector (U.FL / MHF I compatible); every variant is EOL.

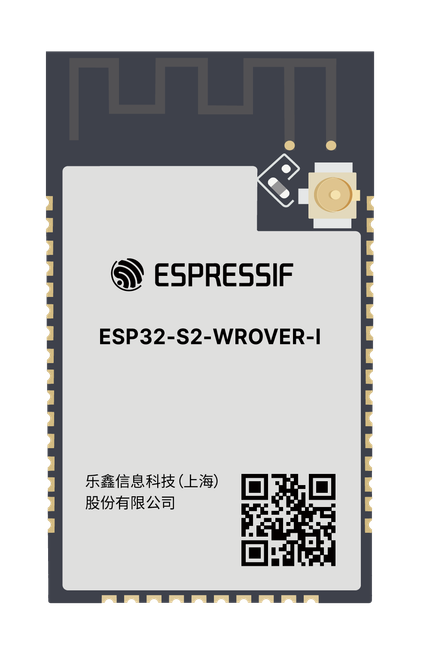

ESP32-S2-WROVER-I module
18 × 31 mm
16MB
Flash
2MB
PSRAM
36
GPIOs
18×31mm
Size

Specifications

Datasheet ↗

Module

FamilyWROVER
Embedded chipESP32-S2
GPIOs36 (datasheet: 37; IO26 is the PSRAM chip select)
Module pins42
AntennaExternal antenna connector (U.FL / MHF I compatible)
Dev boardESP32-S2-Saola-1
Operating temp-40°C ~ 85°C
Dimensions18 × 31 × 3.3 mm

Memory

Flash4 / 8 / 16 MB
PSRAMUp to 2 MB

Connectivity

Wi-Fi802.11 b/g/n 2.4 GHz

Module variants

3 variants
Base lowest-cost config Top highest spec High-temp extended temperature range EOL end of life
VariantFlashPSRAMTags
ESP32-S2-WROVER-I-N4R24 MB2 MBBase EOL
ESP32-S2-WROVER-I-N8R28 MB2 MBEOL
ESP32-S2-WROVER-I-N16R216 MB2 MBTop EOL

About the ESP32-S2-WROVER-I

ESP32-S2-WROVER-I is the external-antenna version of the ESP32-S2-WROVER: the same ESP32-S2 module with SPI flash and 2 MB PSRAM, with an antenna connector instead of the PCB antenna. It is end of life (EOL); every variant is EOL.

  • Size: 18 x 31 x 3.3 mm
  • 2.4 GHz Wi-Fi (802.11 b/g/n), no Bluetooth
  • Xtensa single-core 32-bit LX7 CPU, up to 240 MHz
  • 36 usable GPIOs on 42 pins plus a ground pad: the datasheet counts 37, but IO26 is wired to the PSRAM chip select
  • 4, 8 or 16 MB SPI flash and 2 MB PSRAM
  • Full-speed USB OTG, touch sensor, ADC, DAC
  • Operating temperature: -40°C ~ 85°C
  • First-generation antenna connector, compatible with Hirose U.FL, I-PEX MHF I and Amphenol AMC

All ESP32-S2-WROVER-I variants are end of life. They differ only in flash size; each has 2 MB PSRAM and is rated -40°C ~ 85°C. The datasheet table lists the 4 MB part, and Espressif's product selector lists the 8 MB and 16 MB parts.

  • ESP32-S2-WROVER-I-N4R2: 4 MB flash, 2 MB PSRAM.
  • ESP32-S2-WROVER-I-N8R2: 8 MB flash, 2 MB PSRAM.
  • ESP32-S2-WROVER-I-N16R2: 16 MB flash, 2 MB PSRAM.
