ESP32-S2-MINI-2U

ACTIVE MINI

ESP32-S2-MINI-2U is a general-purpose Wi-Fi module built around ESP32-S2 chip revision v1.0, with an external antenna connector (W.FL / MHF III compatible) in place of the PCB antenna.

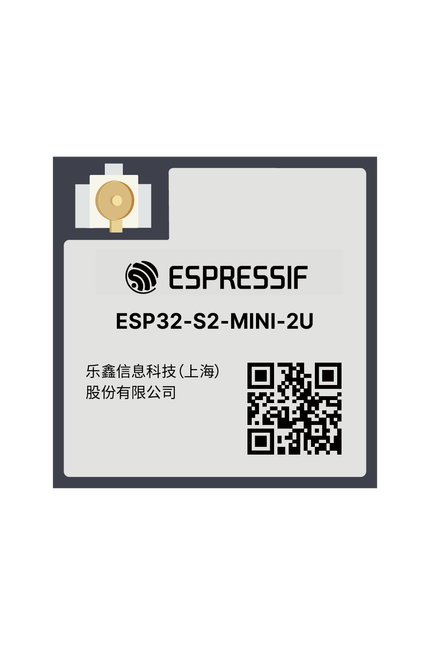

ESP32-S2-MINI-2U module
15.4 × 15.4 mm
4MB
Flash
2MB
PSRAM
37
GPIOs
15.4×15.4mm
Size

Specifications

Datasheet ↗

Module

FamilyMINI
Embedded chipESP32-S2FH4, ESP32-S2FN4R2
GPIOs37 (36 on N4R2; IO26 goes to the in-package PSRAM)
Module pins65
AntennaExternal antenna connector (W.FL / MHF III compatible, not U.FL)
Dev boardESP32-S2-DevKitM-1
Operating temp-40°C ~ 85°C
Dimensions15.4 × 15.4 × 2.4 mm

Memory

Flash4 MB
PSRAMUp to 2 MB

Connectivity

Wi-Fi802.11 b/g/n 2.4 GHz

Module variants

2 variants
Base lowest-cost config Top highest spec High-temp extended temperature range
VariantFlashPSRAMTags
ESP32-S2-MINI-2U-N44 MB-Base
ESP32-S2-MINI-2U-N4R24 MB2 MBTop

About the ESP32-S2-MINI-2U

ESP32-S2-MINI-2U is the external-antenna version of the ESP32-S2-MINI-2: the same ESP32-S2 module (chip revision v1.0) with an antenna connector instead of the PCB antenna. Espressif's product selector lists it as the replacement for ESP32-S2-MINI-1U-N4.

  • Small size: 15.4 x 15.4 x 2.4 mm
  • 2.4 GHz Wi-Fi (802.11 b/g/n), no Bluetooth
  • 37 GPIOs on a 65-pin footprint (36 on N4R2)
  • 4 MB flash in the chip package, optional 2 MB PSRAM (N4R2)
  • Full-speed USB OTG, touch sensor, ADC, DAC
  • Operating temperature: -40°C ~ 85°C
  • Third-generation antenna connector, compatible with Hirose W.FL, I-PEX MHF III and Amphenol AMMC (not U.FL / MHF I)

The ESP32-S2-MINI-2U variants differ only in PSRAM. Both are rated -40°C ~ 85°C. Revision v1.2 of the datasheet removed the 105°C ESP32-S2-MINI-2U-H4.

  • ESP32-S2-MINI-2U-N4: 4 MB flash (ESP32-S2FH4 chip), no PSRAM.
  • ESP32-S2-MINI-2U-N4R2: 4 MB flash and 2 MB PSRAM (ESP32-S2FN4R2 chip). IO26 is used by the PSRAM and cannot be used for anything else.
