End of life - this module is discontinued and not recommended for new designs.
ESP32 Boards/ ESP32-S2/ ESP32-S2-WROOM-I

ESP32-S2-WROOM-I

EOL WROOM

ESP32-S2-WROOM-I is an end-of-life ESP32-S2 Wi-Fi module with 4 MB flash and an external antenna connector (U.FL / MHF I compatible); every variant is EOL.

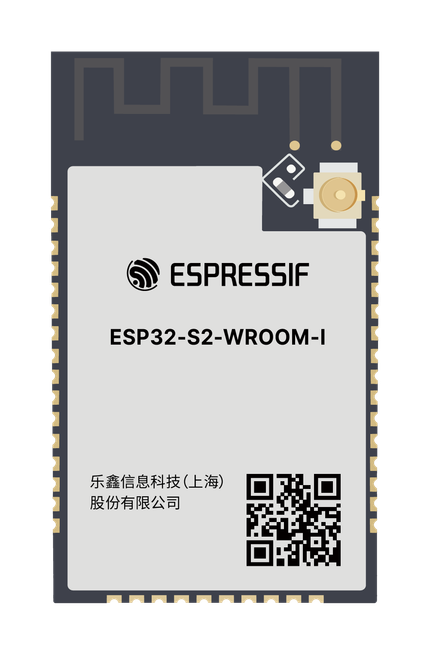

ESP32-S2-WROOM-I module
18 × 31 mm
4MB
Flash
None
PSRAM
37
GPIOs
18×31mm
Size

Specifications

Datasheet ↗

Module

FamilyWROOM
Embedded chipESP32-S2
GPIOs37
Module pins42
AntennaExternal antenna connector (U.FL / MHF I compatible)
Dev boardESP32-S2-Saola-1
Operating temp-40°C ~ 85°C (H4: -40°C ~ 105°C)
Dimensions18 × 31 × 3.3 mm

Memory

Flash4 MB
PSRAMNone

Connectivity

Wi-Fi802.11 b/g/n 2.4 GHz

Module variants

2 variants
Base lowest-cost config Top highest spec High-temp extended temperature range EOL end of life
VariantFlashPSRAMTags
ESP32-S2-WROOM-I-N44 MB-Base EOL
ESP32-S2-WROOM-I-H44 MB-Top High-temp EOL

About the ESP32-S2-WROOM-I

ESP32-S2-WROOM-I is the external-antenna version of the ESP32-S2-WROOM: the same ESP32-S2 module with 4 MB SPI flash, with an antenna connector instead of the PCB antenna. It is end of life (EOL); every variant is EOL.

  • Size: 18 x 31 x 3.3 mm
  • 2.4 GHz Wi-Fi (802.11 b/g/n), no Bluetooth
  • Xtensa single-core 32-bit LX7 CPU, up to 240 MHz
  • 37 GPIOs on 42 pins plus a ground pad
  • 4 MB SPI flash, no PSRAM
  • Full-speed USB OTG, touch sensor, ADC, DAC
  • Operating temperature: -40°C ~ 85°C (H4: -40°C ~ 105°C)
  • First-generation antenna connector, compatible with Hirose U.FL, I-PEX MHF I and Amphenol AMC

All ESP32-S2-WROOM-I variants are end of life. Both have 4 MB flash and no PSRAM and differ only in temperature rating. The datasheet notes that a -40°C ~ 105°C version could be ordered; Espressif's product selector lists it as I-H4.

  • ESP32-S2-WROOM-I-N4: 4 MB flash, -40°C ~ 85°C.
  • ESP32-S2-WROOM-I-H4: 4 MB flash, -40°C ~ 105°C.
