End of life - this module is discontinued and not recommended for new designs.
ESP32 Boards/ ESP32-S2/ ESP32-S2-SOLO

ESP32-S2-SOLO

EOL SOLO

ESP32-S2-SOLO is an end-of-life ESP32-S2 Wi-Fi module; every variant is EOL. ESP32-S2-SOLO-2 has the same dimensions and pin assignment.

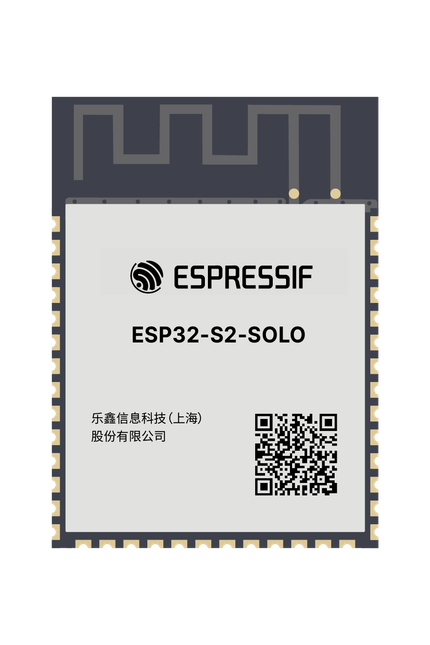

ESP32-S2-SOLO module
18 × 25.5 mm
16MB
Flash
2MB
PSRAM
36
GPIOs
18×25.5mm
Size

Specifications

Datasheet ↗

Module

FamilySOLO
Embedded chipESP32-S2, ESP32-S2R2
GPIOs36
Module pins41
AntennaPCB antenna
Dev boardESP32-S2-DevKitC-1
Operating temp-40°C ~ 85°C (H4: -40°C ~ 105°C)
Dimensions18 × 25.5 × 3.1 mm

Memory

Flash4 / 8 / 16 MB
PSRAMUp to 2 MB

Connectivity

Wi-Fi802.11 b/g/n 2.4 GHz

Module variants

5 variants
Base lowest-cost config Top highest spec High-temp extended temperature range EOL end of life
VariantFlashPSRAMTags
ESP32-S2-SOLO-N44 MB-Base EOL
ESP32-S2-SOLO-H44 MB-High-temp EOL
ESP32-S2-SOLO-N4R24 MB2 MBEOL
ESP32-S2-SOLO-N88 MB-EOL
ESP32-S2-SOLO-N1616 MB-Top EOL

About the ESP32-S2-SOLO

ESP32-S2-SOLO is a 2.4 GHz Wi-Fi module built around the ESP32-S2 or ESP32-S2R2 (single-core Xtensa LX7 up to 240 MHz). It is end of life (EOL). ESP32-S2-SOLO-2 has the same size and pin assignment and is in mass production.

  • Size: 18 x 25.5 x 3.1 mm
  • 2.4 GHz Wi-Fi (802.11 b/g/n), no Bluetooth
  • 36 GPIOs on a 41-pin footprint (including the ground EPAD)
  • 4, 8 or 16 MB SPI flash on the module, optional 2 MB PSRAM in the chip package (N4R2)
  • Full-speed USB OTG, touch sensor, ADC, DAC
  • Operating temperature: -40°C ~ 85°C (H4: -40°C ~ 105°C)
  • Integrated PCB antenna

All ESP32-S2-SOLO variants are end of life. The datasheet table lists the 4 MB parts; a footnote says the modules could also be ordered with 8 MB or 16 MB flash, and Espressif's product selector lists those as N8 and N16.

  • ESP32-S2-SOLO-N4: 4 MB flash, no PSRAM, -40°C ~ 85°C.
  • ESP32-S2-SOLO-H4: 4 MB flash, no PSRAM, -40°C ~ 105°C.
  • ESP32-S2-SOLO-N4R2: 4 MB flash and 2 MB PSRAM (ESP32-S2R2 chip), -40°C ~ 85°C.
  • ESP32-S2-SOLO-N8: 8 MB flash, no PSRAM, -40°C ~ 85°C.
  • ESP32-S2-SOLO-N16: 16 MB flash, no PSRAM, -40°C ~ 85°C.
