End of life - this module is discontinued and not recommended for new designs.
ESP32 Boards/ ESP32-S2/ ESP32-S2-WROOM

ESP32-S2-WROOM

EOL WROOM

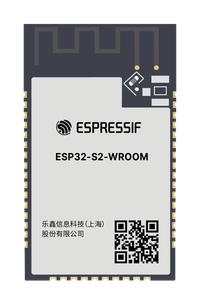

ESP32-S2-WROOM is an end-of-life ESP32-S2 Wi-Fi module with 4 MB flash and a PCB antenna; every variant is EOL.

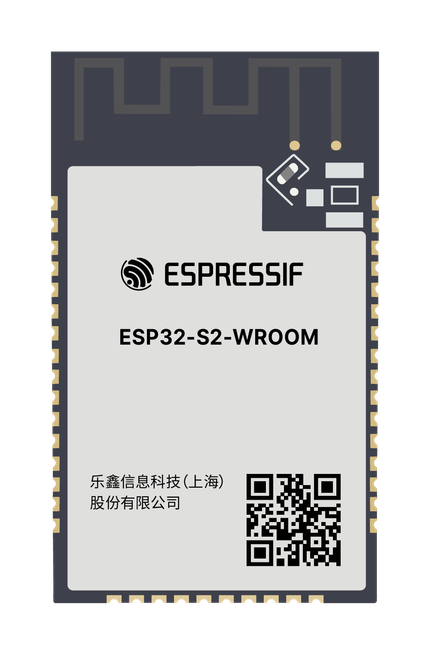

ESP32-S2-WROOM module
18 × 31 mm
4MB
Flash
None
PSRAM
37
GPIOs
18×31mm
Size

Specifications

Datasheet ↗

Module

FamilyWROOM
Embedded chipESP32-S2
GPIOs37
Module pins42
AntennaPCB antenna
Dev boardESP32-S2-Saola-1
Operating temp-40°C ~ 85°C (H4: -40°C ~ 105°C)
Dimensions18 × 31 × 3.3 mm

Memory

Flash4 MB
PSRAMNone

Connectivity

Wi-Fi802.11 b/g/n 2.4 GHz

Module variants

2 variants
Base lowest-cost config Top highest spec High-temp extended temperature range EOL end of life
VariantFlashPSRAMTags
ESP32-S2-WROOM-N44 MB-Base EOL
ESP32-S2-WROOM-H44 MB-Top High-temp EOL

About the ESP32-S2-WROOM

ESP32-S2-WROOM is an ESP32-S2 Wi-Fi module with 4 MB SPI flash and a PCB antenna on the module, without PSRAM. It is end of life (EOL); every variant is EOL.

  • Size: 18 x 31 x 3.3 mm
  • 2.4 GHz Wi-Fi (802.11 b/g/n), no Bluetooth
  • Xtensa single-core 32-bit LX7 CPU, up to 240 MHz
  • 37 GPIOs on 42 pins plus a ground pad
  • 4 MB SPI flash, no PSRAM
  • Full-speed USB OTG, touch sensor, ADC, DAC
  • Operating temperature: -40°C ~ 85°C (H4: -40°C ~ 105°C)
  • Integrated PCB antenna

All ESP32-S2-WROOM variants are end of life. Both have 4 MB flash and no PSRAM and differ only in temperature rating. The datasheet notes that a -40°C ~ 105°C version could be ordered; Espressif's product selector lists it as H4.

  • ESP32-S2-WROOM-N4: 4 MB flash, -40°C ~ 85°C.
  • ESP32-S2-WROOM-H4: 4 MB flash, -40°C ~ 105°C.
