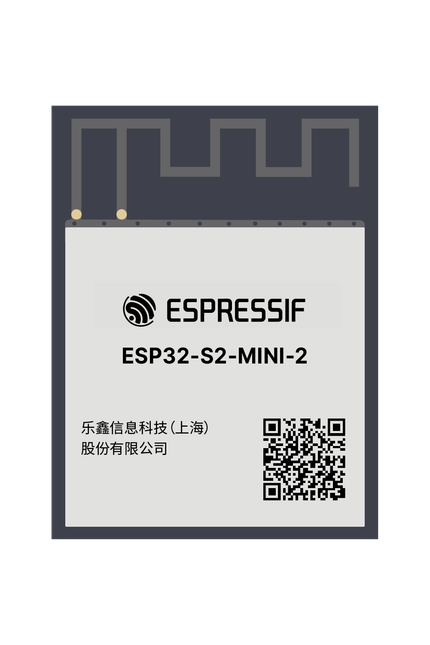

ESP32-S2-MINI-2
ESP32-S2-MINI-2 is a powerful, generic Wi-Fi MCU module integrating ESP32-S2 ECO1 with improved RF performance.
15.4 × 20 mm
4MB
Flash
2MB
PSRAM
65
GPIO pins
15.4×20mm
Size
Specifications
Datasheet ↗Module
FamilyMINI
Embedded chipESP32-S2FH4, ESP32-S2FN4R2
GPIO pins65
AntennaPCB antenna
Dev boardESP32-S2-DevKitM-1
Operating temp-40°C ~ 85°C
Dimensions15.4 × 20 × 2.4 mm
Memory
Flash4 MB
PSRAMUp to 2 MB
Connectivity
Wi-Fi802.11 b/g/n 2.4 GHz
Module variants
3 variantsBase lowest-cost config Top highest spec High-temp extended temperature range
| Variant | Flash | PSRAM | Tags |
|---|---|---|---|
| ESP32-S2-MINI-2-N4 | 4 MB | - | Base |
| ESP32-S2-MINI-2-H4 | 4 MB | - | High-temp |
| ESP32-S2-MINI-2-N4R2 | 4 MB | 2 MB | Top |
About the ESP32-S2-MINI-2
ESP32-S2-MINI-2 is a compact Wi-Fi MCU module based on ESP32-S2 ECO1, ideal for improved RF performance and space-constrained IoT designs.
- Small size: 15.4 x 20 x 2.4 mm
- Wi-Fi (2.4 GHz)
- Improved RF performance
- Wide operating temperature range: -40°C ~ 85°C
- Integrated PCB antenna
- Perfect for smart home, industrial, and consumer IoT
The ESP32-S2-MINI-2 module comes in several variants:
- ESP32-S2-MINI-2-N4: This is the basic variant with 4MB of flash memory and no PSRAM, suitable for most applications.
- ESP32-S2-MINI-2-H4: This is the high-temperature variant with 4MB of flash memory and no PSRAM, designed for harsh environments.
- ESP32-S2-MINI-2-N4R2: This is the added PSRAM variant with 4MB of flash memory and 2MB of PSRAM, ideal for applications requiring additional memory.
