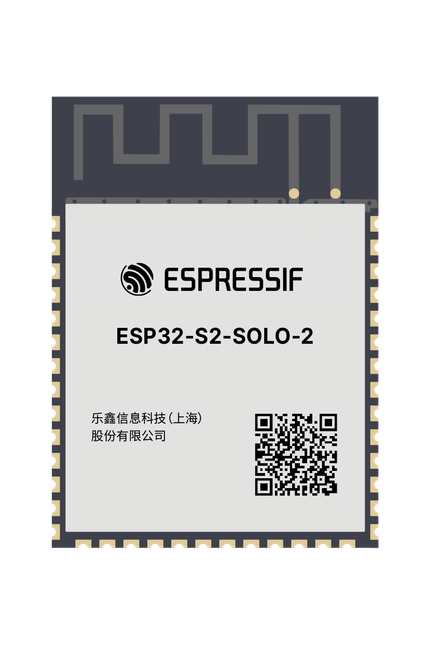

ESP32-S2-SOLO-2
ESP32-S2-SOLO-2 is a powerful, generic Wi-Fi MCU module integrating ESP32-S2 ECO1 with improved RF performance.
18 × 25.5 mm
16MB
Flash
2MB
PSRAM
41
GPIO pins
18×25.5mm
Size
Specifications
Datasheet ↗Module
FamilySOLO
Embedded chipESP32-S2, ESP32-S2R2
GPIO pins41
AntennaPCB antenna
Dev boardESP32-S2-DevKitC-1
Operating temp-40°C ~ 85°C
Dimensions18 × 25.5 × 3.1 mm
Memory
Flash4 / 8 / 16 MB
PSRAMUp to 2 MB
Connectivity
Wi-Fi802.11 b/g/n 2.4 GHz
Module variants
7 variantsBase lowest-cost config Top highest spec High-temp extended temperature range
| Variant | Flash | PSRAM | Tags |
|---|---|---|---|
| ESP32-S2-SOLO-2-N4 | 4 MB | - | Base |
| ESP32-S2-SOLO-2-H4 | 4 MB | - | High-temp |
| ESP32-S2-SOLO-2-N4R2 | 4 MB | 2 MB | |
| ESP32-S2-SOLO-2-N8 | 8 MB | - | |
| ESP32-S2-SOLO-2-N8R2 | 8 MB | 2 MB | |
| ESP32-S2-SOLO-2-N16 | 16 MB | - | |
| ESP32-S2-SOLO-2-N16R2 | 16 MB | 2 MB | Top |
About the ESP32-S2-SOLO-2
ESP32-S2-SOLO-2 is a compact Wi-Fi MCU module based on ESP32-S2 ECO1, ideal for improved RF performance and space-constrained IoT designs.
- Small size: 18 x 25.5 x 3.1 mm
- Wi-Fi (2.4 GHz)
- Improved RF performance
- Wide operating temperature range: -40°C ~ 85°C
- Integrated PCB antenna
- Perfect for smart home, industrial, and consumer IoT
The ESP32-S2-SOLO-2 module comes in several variants:
- ESP32-S2-SOLO-2-N4: This is the basic variant with 4MB of flash memory and no PSRAM, suitable for most applications.
- ESP32-S2-SOLO-2-H4: This is the high-temperature variant with 4MB of flash memory and no PSRAM, designed for harsh environments.
- ESP32-S2-SOLO-2-N4R2: This is the added PSRAM variant with 4MB of flash memory and 2MB of PSRAM, ideal for applications requiring additional memory.
- ESP32-S2-SOLO-2-N8: This variant features 8MB of flash memory, suitable for applications needing more storage.
- ESP32-S2-SOLO-2-N8R2: This variant combines 8MB of flash memory with 2MB of PSRAM, providing enhanced memory capacity for more demanding applications.
- ESP32-S2-SOLO-2-N16: This variant offers 16MB of flash memory, ideal for applications requiring large storage capacity.
- ESP32-S2-SOLO-2-N16R2: This is the top variant with 16MB of flash memory and 2MB of PSRAM, providing the highest memory capacity for the most demanding applications.
